V7 Shielded Pool

The V7 pool is the latest version of Kusama Shield's zero-knowledge privacy pool, deployed on both Paseo testnet and Polkadot mainnet.

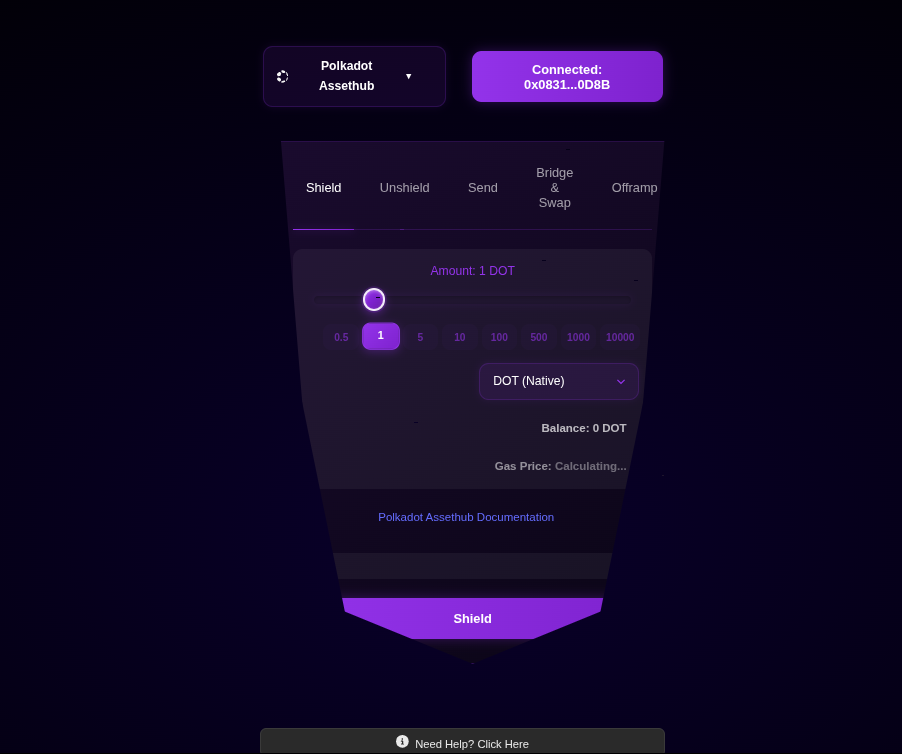

Shield (Deposit)

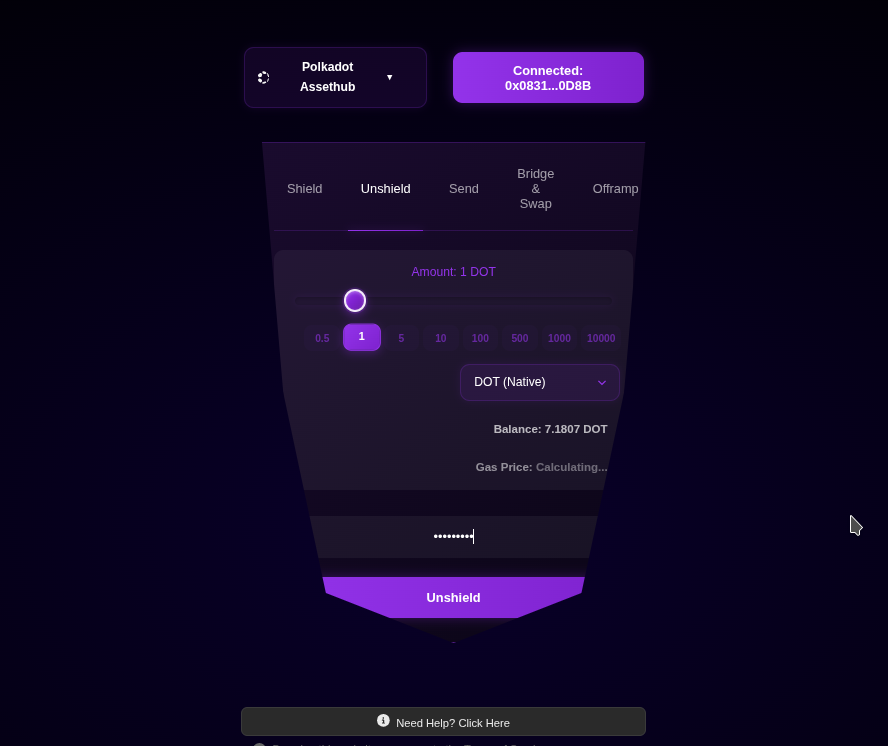

Unshield (Withdraw)

What's New in V7

Commitment Derivation (V7)

All hashing uses Poseidon over BN254, matching the ZK circuit exactly:

nullifier     = poseidon2([secret, 1])
nullifierHash = poseidon1([nullifier])
precommitment = poseidon2([nullifier, secret])
valueAsset    = poseidon2([amountWei, assetId])
commitment    = poseidon2([valueAsset, precommitment])

poseidon1 is a single-input Poseidon hash. V7 uses it for nullifierHash — NOT poseidon2(nullifier, 0).

Withdrawal: 8 Public Signals

When the ZK proof is verified on-chain, the contract receives 8 public signals:

Contract ABI (V7)

function depositNative(bytes32 commitment) external payable
function depositAsset(uint256 assetId, uint256 amount, bytes32 commitment) external
function depositAssetDirect(uint256 assetId, uint256 amount, bytes32 commitment) external
function withdraw(uint256[2] pA, uint256[2][2] pB, uint256[2] pC, uint[8] pubSignals, address recipient) external
function proxy_withdraw(uint256[2] pA, uint256[2][2] pB, uint256[2] pC, uint[8] pubSignals, address recipient) external
function currentRoot() external view returns (uint256)
function treeSize() external view returns (uint256)
function getEscrowBalance(address) external view returns (uint256)
function isNullifierSpent(bytes32) external view returns (bool)
function isKnownRoot(uint256) external view returns (bool)
function verifier() external view returns (address)

Proxy Withdrawals

The proxy_withdraw function routes the withdrawal through a separate proxy contract, giving the recipient a unique sender address each time.

Standard:   Pool ──────────────────▶ Recipient
            (pool address as sender)

Proxy:      Pool ──▶ Proxy Contract ──▶ Recipient
                     (fresh address as sender)

This adds a layer of unlinkability even if the recipient tries to trace the sender. Enable it via the Proxy Withdraw toggle on the Unshield tab.

Gas cost for proxy withdrawals is roughly 17x higher than standard withdrawals due to the extra contract deployment and forwarding logic.

Merkle Tree

V7 uses a LeanIMT (Lean Incremental Merkle Tree):

The tree is synced from on-chain events by the backend proxy. A background monitor polls every 2 seconds for new deposits. The tree_update_lock ensures withdrawals wait for in-progress sync operations.

Root Mismatch Retry

If the local tree root doesn't match the on-chain currentRoot(), the proxy will:

1. Rebuild the tree from the deployment block (not just recent blocks)
2. Retry up to 5 times
3. If still mismatched, return an error

SS58 Address Forwarding

When a withdrawal targets a native SS58 (Substrate) address, the proxy performs a two-step process:

Pool ── withdraw ──▶ Account 1 (H160: 0x74e539fc...) ── transfer_keep_alive ──▶ SS58 destination

This is necessary because the pool only supports EVM (H160) recipients, but users want funds at their Substrate addresses.

Proof Generation

The backend uses rapidsnark for production withdrawals. The browser falls back to snarkjs when generating proofs client-side (e.g., for the Unshield tab).

Circuit artifacts:

• WASM: withdraw_phase2_fixed_v7.wasm
• Proving key: withdraw_phase2_fixed_v7_0001.zkey

Gas Costs (pallet-revive)

Gas costs on pallet-revive are ~270x cheaper than equivalent operations on Ethereum mainnet.

Deployed Contracts

Polkadot AssetHub (Mainnet)

Paseo AssetHub (Testnet)

Event Format

event Deposit(address indexed asset, bytes32 commitment);

Only the asset address and commitment hash are emitted. The nullifierHash is never exposed during deposit — it is only revealed when the deposit is spent (in the ZK proof's public signals).

Context Hash

Every withdrawal binds to a context hash for replay protection:

contextHash = keccak256(abi.encodePacked(senderAddress)) % BN254_R

Where BN254_R = 21888242871839275222246405745257275088548364400416034343698204186575808495617.

This ensures a proof generated for one chain or sender cannot be replayed elsewhere.

Source Code

• Pool contract: FixedIlopPhase2Paseo_v7.sol
• Circuit: withdraw_phase2_fixed_v7.circom
• Verifier: VerifierPhase2_Fixed_v7.sol
